How can I create a timeline in Ionic?

ionic-v1
1

Hello,

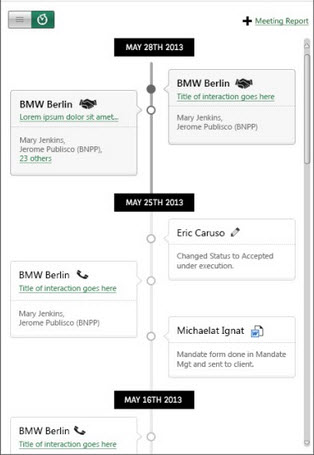

I am needing to dispose some info in a timeline strcuture as the facebook or this example:

How can I achieve it with Ionic?
Does Ionic have some pre-component that I can use to make my timeline?

Thanks!
Danilo

2

Just as an initial thought, I haven’t seen this done anywhere yet but I can imagine it would take a fair bit of work to get good depending on what functionality you want.

With the styling however, I think the ionic grid system could work with a number of rows, each with maybe a col-10 for the centre line and then just a col for each of the sides where the boxes go. This would allow for an even and also nicely responsive display. Just an idea!

1 Like
3

Hello Mbrookson,

Well, Do you think that I achieve this kind of format through grid system. In fact what I trying to do is more like it:

1 Like
4

That layout would be easier since you can see the rows are more clear. I will have a go at making a very basic version of it

1 Like
5

Pasted image1600×900 120 KB

Obviously the CSS could be styled a great deal more
Very very basic attempt here…

<div class="row">
  <div class="col col-20">
    <img src="http://www.imagemagick.org/Usage/images/avatar.gif"/>
  </div>
  <div class="col col-10 timeline-col">
        <div class="timeline"></div>
  </div>
  <div class="col col-60">
    <div class="card col-card">
      <!-- <div class="item item-text-wrap">
        This is a basic Card which contains an item that has wrapping text.
      </div> -->
      <div class="item item-text-wrap">
        <h2>Marty McFly</h2>
        <p>November 05, 1955</p>
      </div>
    </div>
  </div>
  <div class="col col-10">
    <span class="badge badge-assertive"><i class="icon ion-ios7-person"></i></span>
  </div>
</div>

<div class="row">
  <div class="col col-20">
  </div>
  <div class="col col-10 timeline-col">
    <div class="timeline"></div>
  </div>
  <div class="col col-70">
    <div class="list card col-card">
      <div class="item item-avatar">
        <img src="http://www.imagemagick.org/Usage/images/avatar.gif"/>
        <h2>Time travelling</h2>
        <p>14 seconds ago</p>
      </div>
    </div>
  </div>
</div>

<style>
.card.col-card{
  margin:0;
}
.card.col-card .item h2,
.card.col-card .item p{
  font-size: 12px;
}

.col img{
  width: 100%;
}

.timeline{
  width: 5px;
  height: 70px;
  background-color: grey;
  margin: 0 auto;
  display: block;
}

.timeline-col{
  padding: 0;
}

.badge{
  margin-top: 20px;
}
</style>
2 Likes
6

Check this codepen >

and the following plugins
http://coderops.com/2013/09/free-jquery-timeline-plugins/

2 Likes
7

you could try any angularjs timeline modules like this:
http://rp.js.org/angular-timeline/example/index.html

9

Hello guys! I know it’s a bit late but I’ve built an Ionic timeline plugin available on the marketplace and you have the code on github as well.

See the Pen gPLaxJ by Marc (@comapedrosa) on CodePen.

10

Throwing in one more timeline from the Market place. There is of course room to make it better, thats why open source as always :smile:

11

You could try downloading this vertical timeline from the ionic marketplace and adapting it to your needs:

12

There’s also a version 2 of this now. A component which takes in the data to be rendered in the timeline as a JSON array.
