Getting BLE 4.0 Floral Sensor data in ionic v1


#1

Using this to scan the mi floral plant sensor

ble.startScan(
        [],
        function(device){
					$scope.spinner = false;
          if(device.name){
            DeviceFactory.addDevice({ 'id': device.id, 'name': device.name });
          }
        },
        function(err){
          alert('Scanning failed. Please try again.');
        }

got list of device

function connect(){
ble.connect(
$stateParams.device_id,
function(res){
$scope.response = JSON.stringify(res);
}
);
}

connected to device got response

{“characteristics”:[{“characteristic”:“2a00”,“service”:“1800”,“properties”:[“Read”]},{“characteristic”:“2a01”,“service”:“1800”,“properties”:[“Read”]},{“characteristic”:“2a02”,“service”:“1800”,“properties”:[“Read”,“Write”]},{“characteristic”:“2a04”,“service”:“1800”,“properties”:[“Read”]},{“descriptors”:[{“uuid”:“2902”}],“characteristic”:“2a05”,“service”:“1801”,“properties”:[“Read”,“Indicate”]},{“descriptors”:[{“uuid”:“2902”}],“characteristic”:“0001”,“service”:“fe95”,“properties”:[“Read”,“Write”,“Notify”]},{“characteristic”:“0002”,“service”:“fe95”,“properties”:[“Read”]},{“characteristic”:“0004”,“service”:“fe95”,“properties”:[“Read”,“Notify”]},{“characteristic”:“0007”,“service”:“fe95”,“properties”:[“Write”]},{“characteristic”:“0010”,“service”:“fe95”,“properties”:[“Write”]},{“characteristic”:“0013”,“service”:“fe95”,“properties”:[“Read”,“Write”]},{“characteristic”:“0014”,“service”:“fe95”,“properties”:[“Read”]},{“descriptors”:[{“uuid”:“2902”}],“characteristic”:“1001”,“service”:“fe95”,“properties”:[“Notify”]},{“characteristic”:“8082caa8-41a6-4021-91c6-56f9b954cc34”,“service”:“fef5”,“properties”:[“Read”,“Write”]},{“characteristic”:“724249f0-5ec3-4b5f-8804-42345af08651”,“service”:“fef5”,“properties”:[“Read”,“Write”]},{“characteristic”:“6c53db25-47a1-45fe-a022-7c92fb334fd4”,“service”:“fef5”,“properties”:[“Read”]},{“characteristic”:“9d84b9a3-000c-49d8-9183-855b673fda31”,“service”:“fef5”,“properties”:[“Read”,“Write”]},{“characteristic”:“457871e8-d516-4ca1-9116-57d0b17b9cb2”,“service”:“fef5”,“properties”:[“Read”,“WriteWithoutResponse”,“Write”]},{“descriptors”:[{“uuid”:“2902”}],“characteristic”:“5f78df94-798c-46f5-990a-b3eb6a065c88”,“service”:“fef5”,“properties”:[“Read”,“Notify”]},{“characteristic”:“1a00”,“service”:“1204”,“properties”:[“Read”,“Write”]},{“descriptors”:[{“uuid”:“2902”}],“characteristic”:“1a01”,“service”:“1204”,“properties”:[“Read”,“Write”,“Notify”]},{“descriptors”:[{“uuid”:“1a02”}],“characteristic”:“1a02”,“service”:“1204”,“properties”:[“Read”]},{“characteristic”:“1a11”,“service”:“1206”,“properties”:[“Read”]},{“descriptors”:[{“uuid”:“2902”}],“characteristic”:“1a10”,“service”:“1206”,“properties”:[“Read”,“Write”,“Notify”]},{“descriptors”:[{“uuid”:“1a12”}],“characteristic”:“1a12”,“service”:“1206”,“properties”:[“Read”]}],“advertising”:{},“id”:“C4:7C:8D:63:81:E2”,“services”:[“1800”,“1801”,“fe95”,“fef5”,“1204”,“1206”],“rssi”:-55,“name”:“Flower care”}

tried to read data with

ble.read(
$stateParams.device_id,
$scope.ReadData.service,
$scope.ReadData.char
),
function(response){
//$ionicLoading.hide();
var data = new Uint8Array(response);
beatsPerMinute.innerHTML = data[1];
}



nothing hapens

#2

Try to read the Failure Callback Function and see if you get any errors.


#3
$scope.read = function(){
		ionicToast.show('Reading Data','top', false, 3000);
		beatsPerMinute.innerHTML = 'contacting';
		//alert(JSON.stringify($scope.ReadData));
		//$ionicLoading.show();
		ble.connect($stateParams.device_id,function(res){
				beatsPerMinute.innerHTML = 'connected with'+ res.name;
				ble.read(res.device_id,$scope.ReadData.service,$scope.ReadData.char,function(buffer){
					alert(JSON.stringify(buffer));
					ionicToast.show(JSON.stringify(buffer),'top', false, 3000);//$ionicLoading.hide();
					var data = new Uint8Array(buffer);
					ionicToast.show(JSON.stringify(data),'middle', false, 3000);
					beatsPerMinute.innerHTML = "Data: "+data[1];
				},function(reason) {
					beatsPerMinute.innerHTML = "Data Error "+reason;
		     	ionicToast.show(JSON.stringify(reason),'middle', false, 6000);
		    })
			},function(error){
				beatsPerMinute.innerHTML = "Connection Error"+JSON.stringify(error);
			})

	}

gettingData Error Peripheral null not found


#4

If you see the actual implementation, it checks the second parameter i.e. macaddress and gives that error. Check the value of your macaddress/device_id and ensure that it is passed correctly.
You can also check the isConnected function by passing the device id.

ble.isConnected(
'FFCA0B09-CB1D-4DC0-A1EF-31AFD3EDFB53',
function() {
    console.log("Peripheral is connected");
},
function() {
    console.log("Peripheral is *not* connected");
}

);


#5
ble.connect(id,function(res){
				ionicToast.show(id,'middle', false, 1000);
				beatsPerMinute.innerHTML = 'connected with'+ res.name+' '+id;
				ble.read(res.id,$scope.ReadData.service,$scope.ReadData.char,function(buffer){
					//ionicToast.show(id,'middle', false, 1000);
					deviceId.innerHTML = id;
					beatsPerMinute1.innerHTML = "Buffer: "+JSON.stringify(buffer);
					//alert(JSON.stringify(buffer));
					//ionicToast.show(JSON.stringify(buffer),'top', false, 3000);//$ionicLoading.hide();
					var data = new Uint8Array(buffer);
					//ionicToast.show(JSON.stringify(data),'middle', false, 3000);
					beatsPerMinute.innerHTML = "Data: "+data;
				},function(reason) {
					ionicToast.show(id,'middle', false, 1000);
					beatsPerMinute.innerHTML = "Data Error "+JSON.stringify(reason);
		     	ionicToast.show(JSON.stringify(reason),'middle', false, 1000);
		    })
			},function(error){
				ionicToast.show(id,'middle', false, 1000);
				beatsPerMinute.innerHTML = "Connection Error"+JSON.stringify(error);
			})


#6

can you suggest which service id is for what, as
https://www.open-homeautomation.com/2016/08/23/reverse-engineering-the-mi-plant-sensor/

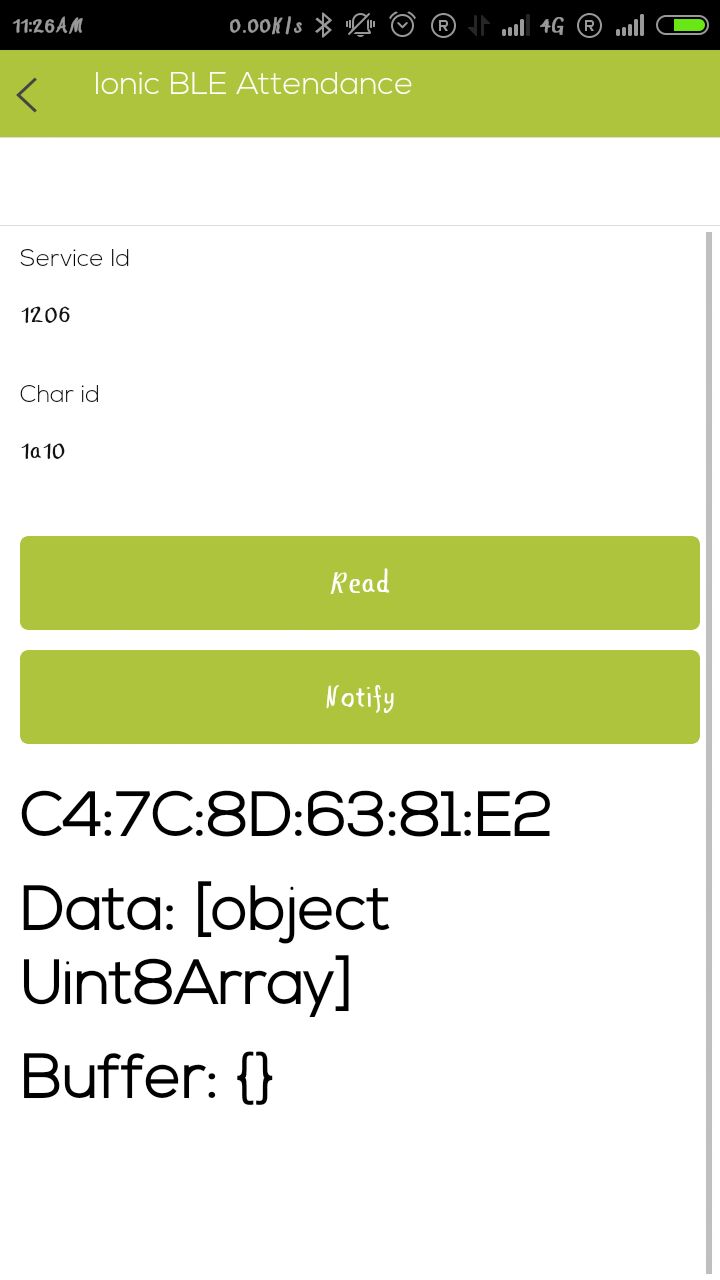

it shows different response what i am getting show in previous posts. Now trying to get data but its empty.


#8

Can you paste the response of ble.connect and ble.startscan methods


#9


#10

it looks ok. no idea why its not working.


#11

do you know anyone that can help me to do this. Because i need to do this and the timeline getting over.
