Android keyboard + edge-to-edge issue: gray area after keyboard hide and inconsistent resize (Capacitor 8)

[HarshSuthar05]

Description

Hi everyone,

We are facing a persistent keyboard + layout issue in an Ionic Angular + Capacitor Android app. The behavior appears to be related to keyboard resize and edge-to-edge handling rather than CSS alone.

We’ve tried multiple configurations, but cannot achieve both:

• correct keyboard push/resize behavior

• and no gray/blank area after keyboard hide

---

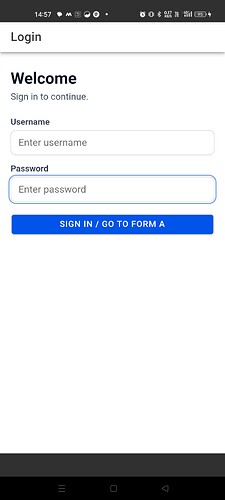

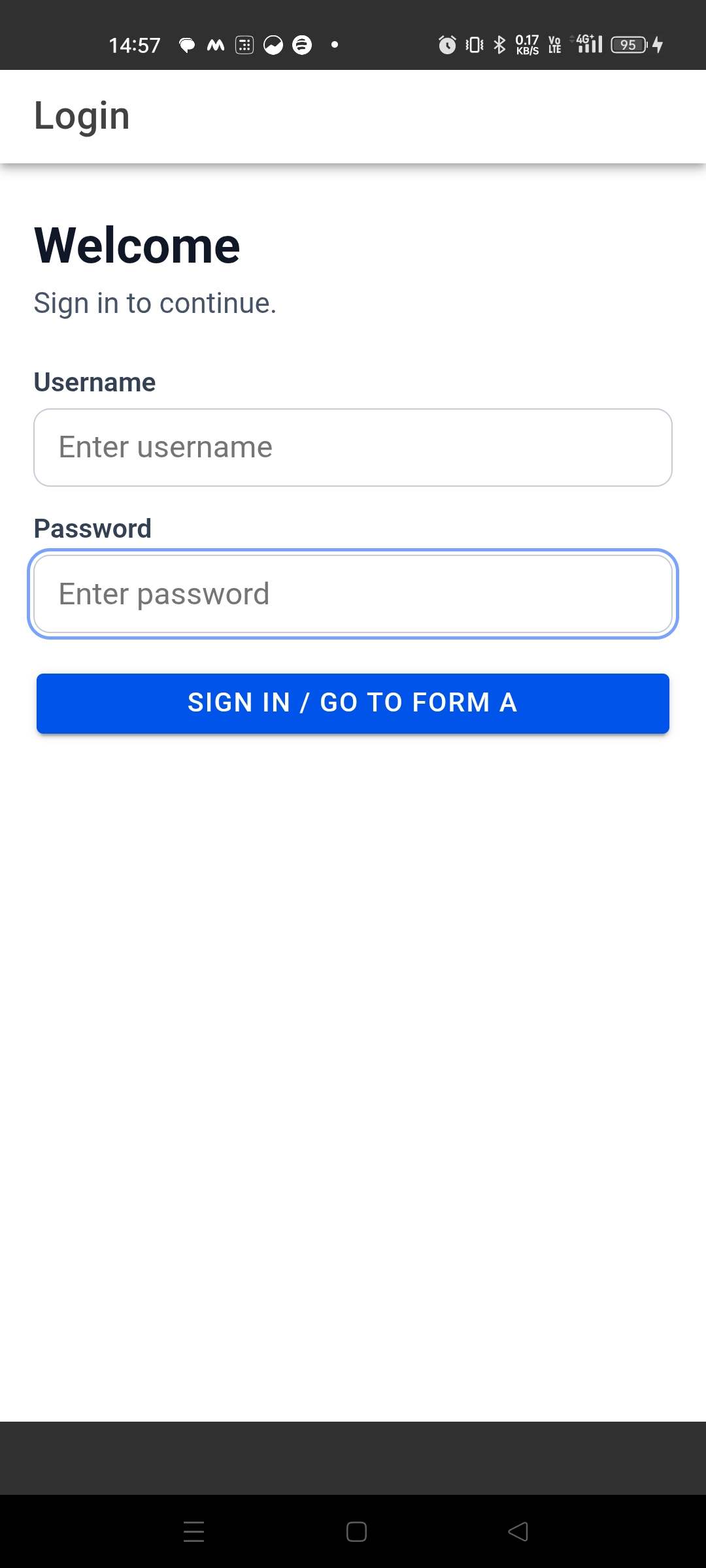

As you can see a gray space is added above the home tab, this is added by default and stays throughout the application.

Additionally,

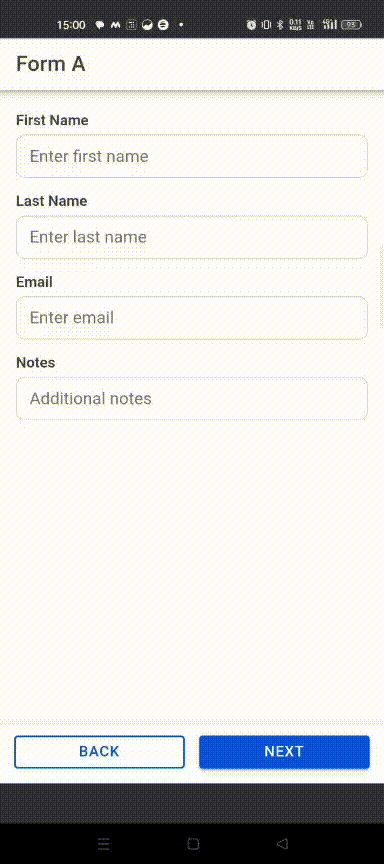

when resizeOnFullScreen: true, we face the below issue

when it is false resizeOnFullScreen: false, then only the gray strip resists and this gray strip is not visible while we inspect through chrome inspect

Environment

• Ionic Angular: ~8.8.x

• Angular: ~20.3.x

• Capacitor (core/android/cli): ~8.2.x

• @capacitorcapacitor/keyboard: ~@capacitor.0.x

• @capacitor/splash-@capacitorcreen: ~8.0.x

• @capacitor/status-bar: ~8.0.x

• Devices tested: Pixel (issue reproducible), also tested on non-Pixel

---

Current Configuration

Capacitor config:

• SplashScreen.launchShowDuration = 0

• SplashScreen.launchAutoHide = false

• SplashScreen.splashFullScreen = false

• SplashScreen.splashImmersive = true

• Keyboard.resize = Ionic

• Keyboard.resizeOnFullScreen = true

Status bar:

• overlaysWebView = true (edge-to-edge)

Android:

• No explicit windowSoftInputMode initially (also tested with adjustResize and adjustNothing)

Current Device : Realme Narzo 30 - android version 12. Also faced issues in pixel devices.

---

Observed Behavior

We see two conflicting behaviors depending on configuration:

Case 1: resizeOnFullScreen = true

• Keyboard pushes layout upward correctly

• BUT a gray area appears at the bottom (resembles incorrect inset handling)

• Sometimes gray space remains even after keyboard is dismissed

Case 2: resizeOnFullScreen = false

• Gray area issue disappears

• BUT keyboard does not push layout upward, input behind the keyboard stays behind until keyboard is closed.

• Input fields can be hidden → poor UX

---

Additional Observations

• Issue is more noticeable on Pixel devices

• Gray area is visible on device and screen recording

• Not visible in Chrome DevTools (chrome://inspect), which suggests it may be a native/inset issue rather than DOM/CSS ( only when resizeOnFullScreen = false )

• Issue becomes more consistent after:

  • navigating between pages

  • opening/closing keyboard multiple times

  • app resume / notification interaction

What We Tried

• Keyboard resize modes:

  • Ionic

  • Native

  • Body

  • None

• resizeOnFullScreen:

  • true

  • false

• windowSoftInputMode:

  • adjustResize

  • adjustNothing

• Status bar:

  • overlaysWebView true/false

• Removed safe-area paddings and background issues

• Ensured prope@null app/theme background (no @null)

Key Problem

There is no configuration that gives both:

• correct keyboard layout shift

• no gray area / leftover inset

---

Questions

1. Is this expected behavior with Capacitor 8 + edge-to-edge on Android (especially Android 12 / Pixel)?

2. Is resizeOnFullScreen known to cause inset inconsistencies in fullscreen mode?

3. Should keyboard resizing now be handled manually instead of relying on Capacitor resize?

4. Is there a recommended “stable” configuration for:

   • edge-to-edge enabled

   • proper keyboard push

   • no gray area

[vosecek]

Hi, met same issue today (using Angular + Capacitor), the solution using Claude agent is in modifying MainActivity.java :

public class MainActivity extends BridgeActivity {

    @Override
    public void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);

        // Capacitor 8's built-in SystemBars plugin sets padding on the WebView's parent,
        // while @capawesome/capacitor-android-edge-to-edge-support sets margins on the WebView
        // itself. Both apply keyboard (IME) insets, causing them to stack and squish the WebView
        // to nearly zero height when the keyboard opens. Override the parent listener to a no-op
        // so only the EdgeToEdge plugin's margins take effect.
        getBridge().getWebView().post(() -> {
            View parent = (View) getBridge().getWebView().getParent();
            ViewCompat.setOnApplyWindowInsetsListener(parent, (v, insets) -> {
                v.setPadding(0, 0, 0, 0);
                return insets;
            });
            getBridge().getWebView().requestApplyInsets();
        });
    }
}

[HarshSuthar05]

Thank you so much for sharing the fix. I tried the same MainActivity change but the issue still persists on our side.

Would you mind sharing a bit more about your exact working setup so we can compare? It would really help narrow down what’s different between the environments.

Mainly things like:

• your Capacitor / Ionic / Angular versions

• Android build setup (compileSdk, targetSdk, minSdk, Gradle/AGP)

• the Android OS + device model where it works

• your capacitor.config keyboard settings (resize mode, resizeOnFullScreen, etc.)

• your full MainActivity and any activity flags in AndroidManifest

• whether you’re using any edge-to-edge or safe-area related plugins

If you can share those pieces, we can try to replicate the same setup and see where our configuration differs. Thanks again for the help!

[vosecek]

Hey,

my final MainActivity.java is following (another edit for other problem had to be made)

package com.my.app

import android.os.Bundle;
import android.view.View;
import android.view.ViewGroup;
import androidx.core.graphics.Insets;
import androidx.core.view.ViewCompat;
import androidx.core.view.WindowInsetsCompat;
import com.getcapacitor.BridgeActivity;

public class MainActivity extends BridgeActivity {

    @Override
    public void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);

        getBridge().getWebView().post(() -> {
            View webView = getBridge().getWebView();
            View parent = (View) webView.getParent();

            // Neutralize SystemBars plugin's parent insets listener (prevents double-stacking
            // with the EdgeToEdge plugin which handles the WebView directly).
            ViewCompat.setOnApplyWindowInsetsListener(parent, (v, insets) -> {
                v.setPadding(0, 0, 0, 0);
                return insets;
            });

            // Override the EdgeToEdge plugin's WebView listener so it applies only system bar
            // margins and NOT IME (keyboard) margins. Applying IME margins resizes the WebView,
            // which causes Chromium to invalidate the input connection and immediately call
            // hideSoftInputFromWindow — making the keyboard close right after it opens.
            ViewCompat.setOnApplyWindowInsetsListener(webView, (v, insets) -> {
                Insets bars = insets.getInsets(
                    WindowInsetsCompat.Type.systemBars() | WindowInsetsCompat.Type.displayCutout()
                );
                ViewGroup.MarginLayoutParams mlp = (ViewGroup.MarginLayoutParams) v.getLayoutParams();
                mlp.topMargin = bars.top;
                mlp.bottomMargin = bars.bottom;
                mlp.leftMargin = bars.left;
                mlp.rightMargin = bars.right;
                v.setLayoutParams(mlp);
                return WindowInsetsCompat.CONSUMED;
            });

            webView.requestApplyInsets();
        });
    }
}

capacitor.config.ts:

import type {CapacitorConfig} from '@capacitor/cli';

const config: CapacitorConfig = {
  appId: 'XXX',
  appName: 'XXX',
  webDir: 'XXX/browser',
  plugins: {
    EdgeToEdge:{
      backgroundColor:'#333333'
    }
  }
};

export default config;

AndroidManifest.xml

<?xml version="1.0" encoding="utf-8" ?>
<manifest xmlns:android="http://schemas.android.com/apk/res/android">
    <!-- Permissions -->
    <uses-permission android:name="android.permission.ACCESS_COARSE_LOCATION" />
    <uses-permission android:name="android.permission.CAMERA" />
    <uses-permission android:name="android.permission.ACCESS_FINE_LOCATION" />
    <uses-feature android:name="android.hardware.location.gps" />
    <uses-feature
        android:name="android.hardware.camera"
        android:required="false" />

    <uses-permission android:name="android.permission.INTERNET" />

    <application
        android:allowBackup="true"
        android:icon="@mipmap/ic_launcher"
        android:label="@string/app_name"
        android:roundIcon="@mipmap/ic_launcher_round"
        android:supportsRtl="true"
        android:theme="@style/AppTheme">

        <activity
            android:configChanges="orientation|keyboardHidden|keyboard|screenSize|locale|smallestScreenSize|screenLayout|uiMode|navigation"
            android:name=".MainActivity"
            android:label="@string/title_activity_main"
            android:theme="@style/AppTheme.NoActionBarLaunch"
            android:launchMode="singleTask"
            android:exported="true"
>
            <intent-filter>
                <action android:name="android.intent.action.MAIN" />
                <category android:name="android.intent.category.LAUNCHER" />
            </intent-filter>
            <intent-filter android:autoVerify="true">
                <action android:name="android.intent.action.VIEW" />
                <category android:name="android.intent.category.DEFAULT" />
                <category android:name="android.intent.category.BROWSABLE" />


            </intent-filter>
        </activity>

        <provider
            android:name="androidx.core.content.FileProvider"
            android:authorities="${applicationId}.fileprovider"
            android:exported="false"
            android:grantUriPermissions="true">
            <meta-data android:name="android.support.FILE_PROVIDER_PATHS" android:resource="@xml/file_paths" />
        </provider>
    </application>
</manifest>

package.json

{
  "name": "XX",
  "version": "1.10.0",
  "build": "486",
  "scripts": {
    "ng": "ng",
    "start": "ng serve",
    "build": "ng build",
    "watch": "ng build --watch --configuration development",
    "test": "ng test",
    "sass": "sass --watch ./src/assets/scss:./src/assets/css/",
    "sass-min": "sass ./src/assets/scss:./src/assets/css/ --style compressed"
  },
  "private": true,
  "dependencies": {
    "@angular-slider/ngx-slider": "^17.0.2",
    "@angular/animations": "^17.3.12",
    "@angular/cdk": "^17.3.10",
    "@angular/common": "^17.3.12",
    "@angular/compiler": "^17.3.12",
    "@angular/core": "^17.3.12",
    "@angular/fire": "^17.1.0",
    "@angular/forms": "^17.3.12",
    "@angular/google-maps": "^17.3.10",
    "@angular/material": "^17.3.10",
    "@angular/platform-browser": "^17.3.12",
    "@angular/platform-browser-dynamic": "^17.1.0",
    "@angular/router": "^17.3.12",
    "@capacitor-mlkit/barcode-scanning": "file:../../plugins/capacitor-mlkit/packages/barcode-scanning",
    "@capacitor/android": "^8.2.0",
    "@capacitor/app": "^8.0.1",
    "@capacitor/browser": "^8.0.2",
    "@capacitor/cli": "^8.2.0",
    "@capacitor/clipboard": "^8.0.1",
    "@capacitor/core": "^8.2.0",
    "@capacitor/geolocation": "^8.1.0",
    "@capacitor/google-maps": "^8.0.1",
    "@capacitor/ios": "^8.2.0",
    "@capacitor/status-bar": "^8.0.1",
    "@capawesome/capacitor-android-edge-to-edge-support": "^8.0.0",
    "@googlemaps/markerclusterer": "^2.6.2",
    "@ng-bootstrap/ng-bootstrap": "^16.0.0",
    "@ng-select/ng-select": "^12.0.7",
    "@ngx-translate/core": "^15.0.0",
    "@ngx-translate/http-loader": "^8.0.0",
    "@popperjs/core": "^2.11.8",
    "angularx-flatpickr": "^7.3.0",
    "angularx-qrcode": "^17.0.1",
    "apexcharts": "^3.45.2",
    "barcode-detector": "^3.0.5",
    "bootstrap": "^5.3.2",
    "deepl-node": "^1.21.0",
    "dotenv": "^17.2.3",
    "html2canvas": "^1.4.1",
    "libphonenumber-js": "^1.11.15",
    "ng-apexcharts": "1.10.0",
    "ngx-color-picker": "^16.0.0",
    "ngx-colors": "^3.5.3",
    "ngx-easy-table": "^15.7.0",
    "ngx-editor": "^17.5.4",
    "ngx-image-compress": "^18.1.5",
    "ngx-pull-to-refresh": "^17.0.0",
    "ngx-toastr": "^18.0.0",
    "overlayscrollbars-ngx": "^0.5.1",
    "rxjs": "~7.8.0",
    "sass": "^1.70.0",
    "tslib": "^2.3.0",
    "zone.js": "~0.14.3"
  },
  "devDependencies": {
    "@angular-devkit/build-angular": "^17.1.2",
    "@angular/cli": "^17.1.2",
    "@angular/compiler-cli": "^17.1.0",
    "@capacitor/assets": "^3.0.5",
    "@types/cleave.js": "^1.4.12",
    "@types/googlemaps": "^3.43.3",
    "@types/jasmine": "~5.1.0",
    "jasmine-core": "~5.1.0",
    "karma": "~6.4.0",
    "karma-chrome-launcher": "~3.2.0",
    "karma-coverage": "~2.2.0",
    "karma-jasmine": "~5.1.0",
    "karma-jasmine-html-reporter": "~2.1.0",
    "ts-mockito": "^2.6.1",
    "typescript": "^5.3.3"
  }
}

gradle-wrapper.prooperties

distributionBase=GRADLE_USER_HOME
distributionPath=wrapper/dists
distributionUrl=https\://services.gradle.org/distributions/gradle-8.13-bin.zip
networkTimeout=10000
validateDistributionUrl=true
zipStoreBase=GRADLE_USER_HOME
zipStorePath=wrapper/dists

min sdk 25
target sdk 35

Hope it willbe useful.

[vosecek]

Had to make more edits due to not scrolling content to visible area once keyboard is open. had to install capacitor/keyboard plugin.

public class MainActivity extends BridgeActivity {

    @Override
    public void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);

        getBridge().getWebView().post(() -> {
            View webView = getBridge().getWebView();
            View parent = (View) webView.getParent();

            // Neutralize SystemBars plugin's parent insets listener (prevents double-stacking
            // with the EdgeToEdge plugin which handles the WebView directly).
            ViewCompat.setOnApplyWindowInsetsListener(parent, (v, insets) -> {
                v.setPadding(0, 0, 0, 0);
                return insets;
            });

            // Override the EdgeToEdge plugin's WebView listener so it applies only system bar
            // margins and NOT IME (keyboard) margins. Applying IME margins resizes the WebView,
            // which causes Chromium to invalidate the input connection and immediately call
            // hideSoftInputFromWindow — making the keyboard close right after it opens.
            ViewCompat.setOnApplyWindowInsetsListener(webView, (v, insets) -> {
                Insets bars = insets.getInsets(
                    WindowInsetsCompat.Type.systemBars() | WindowInsetsCompat.Type.displayCutout()
                );
                ViewGroup.MarginLayoutParams mlp = (ViewGroup.MarginLayoutParams) v.getLayoutParams();
                mlp.topMargin = bars.top;
                mlp.bottomMargin = bars.bottom;
                mlp.leftMargin = bars.left;
                mlp.rightMargin = bars.right;
                v.setLayoutParams(mlp);
                return WindowInsetsCompat.CONSUMED;
            });

            webView.requestApplyInsets();
        });
    }
}

and scrolling to visible area is solved with app.component.ts method on app init

initializeKeyboardScroll() {
    Keyboard.addListener('keyboardDidShow', (info) => {
      document.body.style.paddingBottom = info.keyboardHeight + 'px';
      const el = document.activeElement as HTMLElement;
      if (el && el.tagName !== 'BODY') {
        el.scrollIntoView({behavior: 'smooth', block: 'center'});
      }
    });
    Keyboard.addListener('keyboardDidHide', () => {
      document.body.style.paddingBottom = '';
    });
  }

[HarshSuthar05]

Hi,
Thanks a lot once again!

We were able to resolve the issue with only updating the capacitor.config file
here is the file if it helps

import { CapacitorConfig } from '@capacitor/cli';

import { KeyboardResize } from '@capacitor/keyboard';


const config: CapacitorConfig = {

  appId: 'xx',

  appName: 'xx',

  webDir: 'www',

  server: {

    androidScheme: 'https',

  },

  plugins: {

    SplashScreen: {

      launchShowDuration: 0,

      launchAutoHide: false,

      splashFullScreen: false,

      splashImmersive: false,

    },

    StatusBar: {

      overlaysWebView: false,

    },

    CapacitorHttp: {

      enabled: false,

    },

    Keyboard: {

      resize: KeyboardResize.Ionic,

      resizeOnFullScreen: false,

    },

    EdgeToEdge: {

      backgroundColor: '#333333',

    }

  },

  android: {

    allowMixedContent: true,

  },

};




export default config;

and ofcourse like you mentioned - installed "@capawesome/capacitor-android-edge-to-edge-support": "^8.0.0",

[twestrick]

The @capacitor/status-bar is kinda deprecated. SystemBars is the new plugin.

Also, make sure you are on Capacitor 8.3.0 as there were more safe area improvements there - Release 8.3.0 · ionic-team/capacitor · GitHub.

[HarshSuthar05]

Hi

We recently upgraded our build versions and ran into dependency issues. After resolving those, our previous workaround (using StatusBar.overlaysWebView + EdgeToEdge) stopped working on Android.

So we migrated to SystemBars (Capacitor 8.3.0) with this setup:

SplashScreen: {
  launchShowDuration: 0,
  launchAutoHide: false,
  splashFullScreen: false,
  splashImmersive: false,
},
SystemBars: {
  insetsHandling: 'css',
  style: "DARK",
  hidden: false,
  animation: "NONE"
},
Keyboard: {
  resize: KeyboardResize.Ionic,
  resizeOnFullScreen: false,
},

And:

android:windowSoftInputMode="adjustResize"

We also updated CSS to use --safe-area-inset-*.

---

Current behavior

• Screen correctly moves above the keyboard

• But a gray appears above the keyboard

• The strip is not part of the DOM (not visible in inspect)

• Happens only when keyboard is opened

---

What we’ve tried

• SystemBars + safe-area CSS

• EdgeToEdge plugin (removed due to conflicts)

• StatusBar overlay (not reliable on Android 15/16)

• Various CSS fixes (no effect since issue is native)

---

Context

• Capacitor: 8.3.0

• This seems related to edge-to-edge + WebView + keyboard insets

• Saw similar issues reported but no clear resolution

---

Question

Is there any reliable / recommended fix for this gray strip when using SystemBars + adjustResize on Android 15/16?

Or is this currently a known limitation / upstream issue with WebView or Capacitor?

Any guidance would really help
